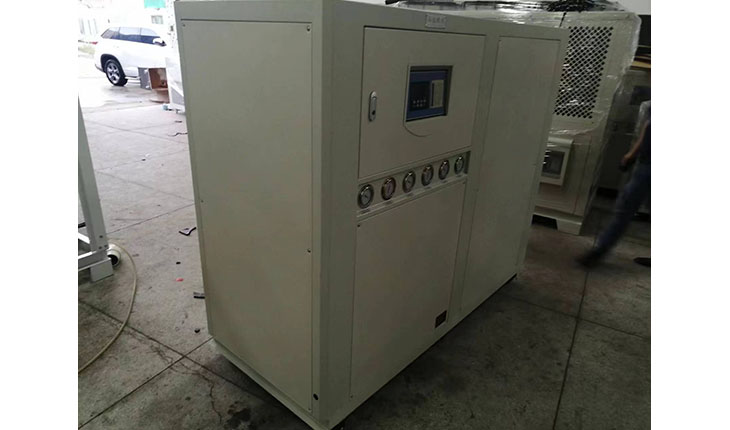

Water cooled box type industrial chiller

Durable compressor: The compressor uses imported famous brand fully enclosed scroll compressors such as DAIKIN, SANYO, and Copeland, which have an efficiency 20-30% higher than reciprocating compressors. It has the advantages of smooth and reliable operation, high efficiency and low failure, low vibration and noise, convenient maintenance, and long service life. According to customer needs and cold tonnage size, single or multiple compressor combinations can be used. The compressor can rely on load changes and automatically alternate operation to balance the operating hours of each compressor, achieving the effect of saving energy consumption and extending the service life of the chiller unit. There are various types of fully enclosed scroll compressors suitable for refrigerant working fluids such as R22, R407c, R134a, etc.

Energy saving and economy: The digital electronic thermostat can accurately control the cold water temperature between 3 ° C and. 50 ° C, thereby controlling the normal operation of the unit and ensuring energy conservation. All unit assembly, internal wiring, refrigerant filling, and unit training are completed in the factory.

The protection system devices include: compressor delay start protector, overload protector, high and low pressure protector, temperature control switch, antifreeze switch, fuse plug, electronic time protection safety valve, compressor overheat protector, compressor frequent start protector, and abnormal indicator light to ensure the normal operation of the unit.

Equipment of the unit: stainless steel circulating water tank, imported water pump, 10P or above. The upper unit can choose dual circuit refrigeration. Even if one circuit fails and malfunctions during operation, the other circuit can still operate normally to ensure normal production procedures.

Equipment of the unit: stainless steel circulating water tank, imported water pump. Units with a capacity of 10P or above can choose dual circuit refrigeration. Even if one circuit fails and malfunctions during operation, the other circuit can still operate normally to ensure normal production procedures.

Energy storage water tank: The standard configuration of the water tank is a stainless steel water tank, which has advantages such as capacity, large size, anti scaling, and good insulation performance. It can automatically replenish and overflow water. The optional water tank can be customized into two types according to customer needs: water storage and ice storage. A design buffer tank can also be provided according to customer requirements to better achieve normal and good operation of the system.

Shell and tube condensers and evaporators: The zero morning device uses different types of heat exchange copper pipes imported from Germany, Japan, and domestically produced. The outer surface of the copper pipes is processed into trapezoidal low rib tubes to increase the heat exchange area and enhance heat exchange performance. The inner surface of the copper tube is smooth, reducing water pressure and making it easy to clean and maintain. The evaporator adopts internally threaded high-efficiency heat exchange copper pipes. The outer surface of the copper tube is spiral smooth, and the water side baffle adopts a non short-circuit design, which improves the efficiency of chilled water mixed heat transfer.

Frozen accessories: Frozen accessories are selected from globally renowned brands such as Danfoss, ALCO, SPORL AN, etc., with superior quality and excellent performance.

Product Description
